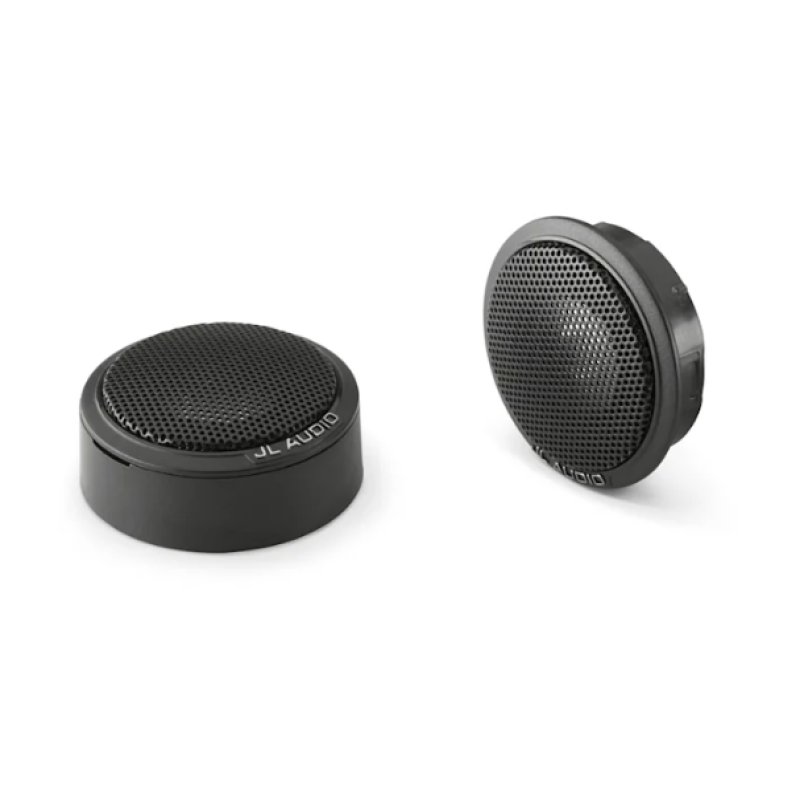

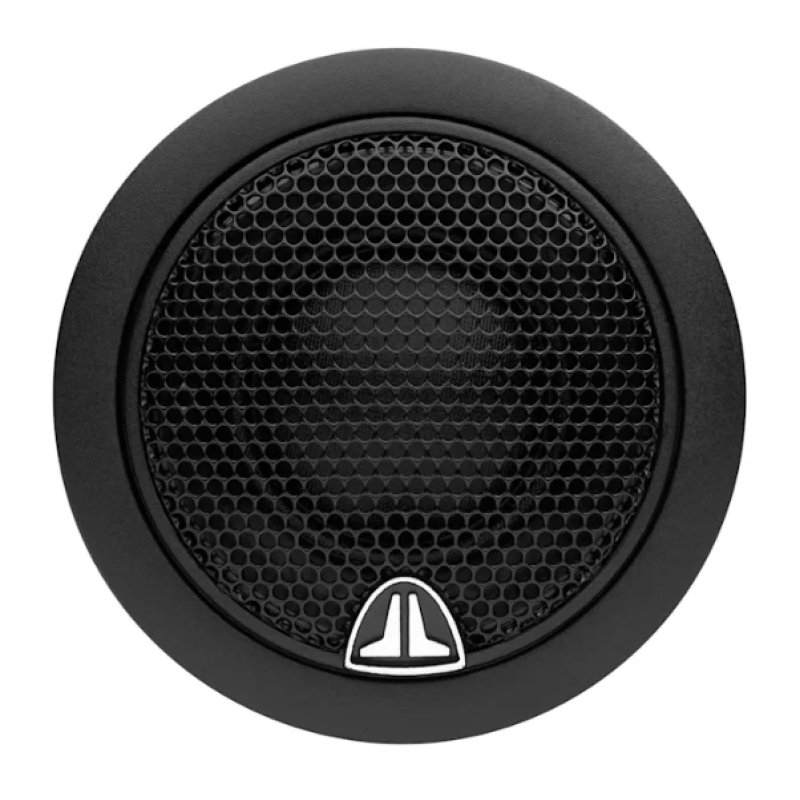

JL Audio® C1 Car Tweeter

0.75" Component Tweeter

( )

Part Number :
010-03353-00

Availability: In Stock

Delivery Time : 10-15 Business Days

Key Features

Experience superior performance with the JL Audio C1 component tweeters. These tweeters offer outstanding off-axis response and extended high-frequency reproduction. Featuring true, edge-driven aluminum domes with silk suspensions,

Whatsapp For Price

Experience superior performance with the JL Audio C1 component tweeters. These tweeters offer outstanding

off-axis response and extended high-frequency reproduction. Featuring true, edge-driven aluminum domes

with silk suspensions, they deliver detailed treble frequencies. Whether flush-mounted or surface-mounted using the included fixtures, the

C1 tweeters are versatile for various installation needs.

Two tweeters
Two crossovers
Two flush mount housings
Two surface mount housings
Two metal spring clips (for flush mounting)
Four 5/8" flat head screws (for surface mounting)
Two 25 mm stud bolts
Two 10 mm stud bolts
Two M5 nuts

Part Number
010-03353-00
Warranty
1 years
Sizes
0.75"
Continuous power handling (RMS)
60 W
Sensitivity (SPL @ 1 W/1 m)
91.0 dB
Frequency response (+/- 3 dB)
4 kHz-22 KHz
Nominal impedance
8
Recommended amplifier power (RMS)
15-100 W/Channel
Tweeter type
Silk dome
Tweeter size
0.75" (19 mm)
Speaker connections
Spade connectors
Flush mount fixture diameter
1.87" (48 mm)
Surface mount fixture diameter
1.69" (43 mm)
Flush mount mounting hole diameter
1.625" (41 mm)
Flush mount mounting depth
0.76" (19 mm)
Flush mount tweeter frontal protrusion
0.29" (7 mm)
Surface mount tweeter frontal protrusion
0.92" (23 mm)
