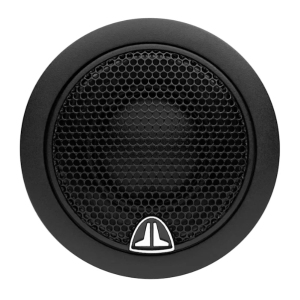

Sizes

• 0.75"

Continuous power handling (RMS)

• 60 W

Sensitivity (SPL @ 1 W/1 m)

• 91.0 dB

Frequency response (+/- 3 dB)

• 4 kHz-22 KHz

Tweeter size

• 0.75" (19 mm)

Speaker connections

• Spade connectors

Flush mount fixture diameter

• 1.87" (48 mm)

Surface mount fixture diameter

• 1.69" (43 mm)

Flush mount mounting hole diameter

• 1.625" (41 mm)

Flush mount mounting depth

• 0.76" (19 mm)

Flush mount tweeter frontal protrusion

• 0.29" (7 mm)

Surface mount tweeter frontal protrusion

• 0.92" (23 mm)

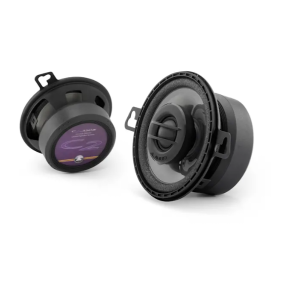

Sizes

• 3.5"

Continuous power handling (RMS)

• 3.5": 25 W

Sensitivity (SPL @ 1 W/1 m)

• 3.5": 83 dB

Frequency response (+/- 3 dB)

• 3.5": 130 Hz-22 KHz

Frame outer diameter

• 3.5": 3.44" (87 mm)

Grille(s) included

• 4"

Mounting hole

• 3.5": 3.19" (81 mm)

Motor outer diameter

• 3.5"/4": 2.36" (60 mm)

Frontal coaxial tweeter protrusion (frontal grille protrusion measured from mounting surface)

• 3.5": 0.54" (14 mm)
