ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING
With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.
10” OR 12” TOUCHSCREENS
SUPPORTS LIVESCOPE™ SONAR1 AND MORE
AVAILABLE WITH BUILT-IN GARMIN NAVIONICS+ MAPPING
WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2
CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES
MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY
WHAT YOU'LL LOVE
LIVESCOPE™ SONAR SUPPORT
The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

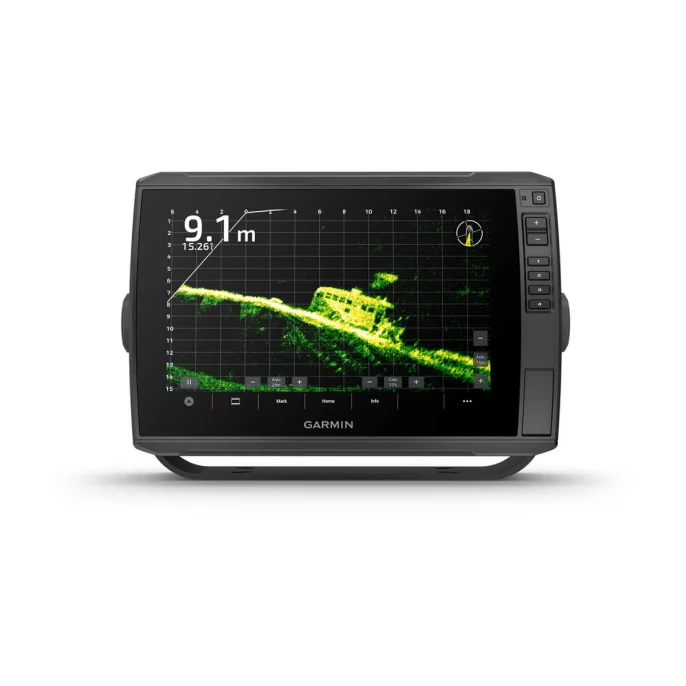

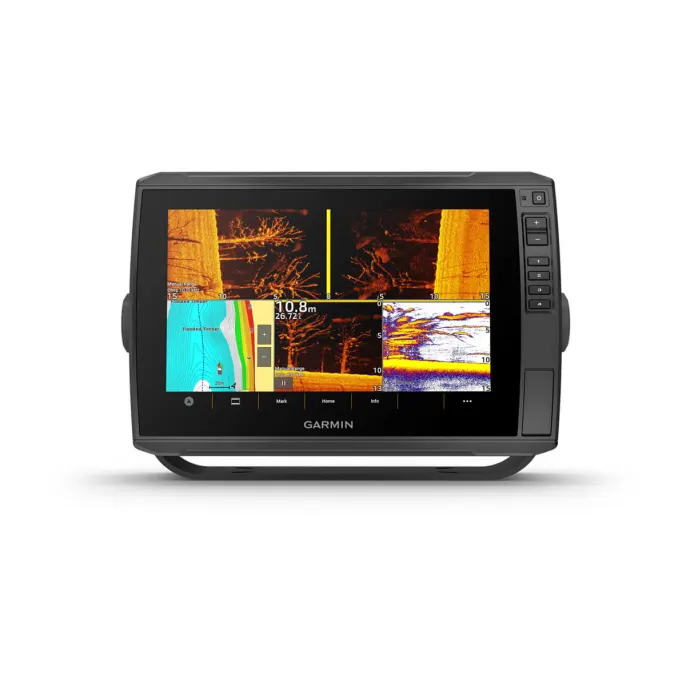

BUILT-IN UHD SONAR
Select models are bundled with a GT56 transducer which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.
VIVID COLOR PALETTES
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

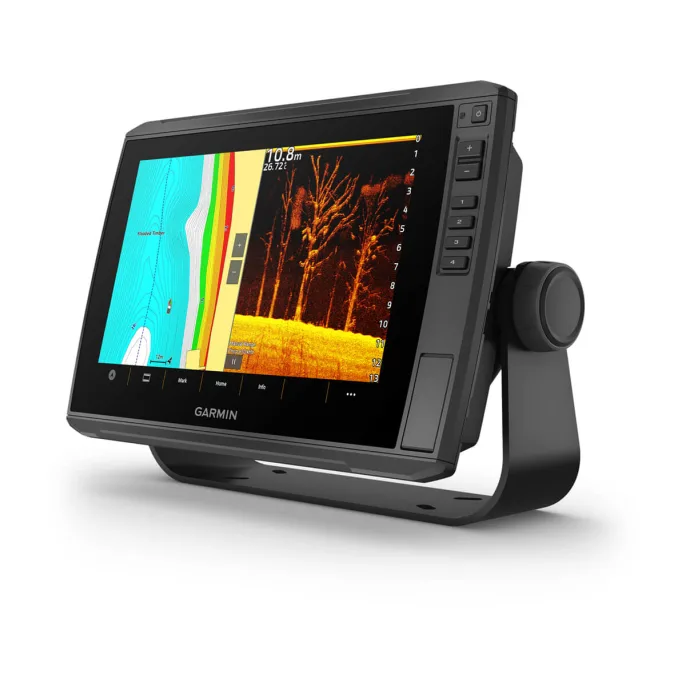

PRELOADED CHARTS
Experience unparalleled coverage and detail. Select units come with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading and more.
PREMIUM MAP UPGRADES
Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.
WIRELESS NETWORKING
If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar3, waypoints and routes — with them.
See everything with the ultra high-definition scanning sonar system.
STAY CONNECTED
MULTI-BAND GPS
Get improved position accuracy with multi-band GPS
NMEA 2000® NETWORK COMPATIBILITY
Connect to heading sensors, autopilots, Fusion-Link™ audio systems and more.
ACTIVECAPTAIN® APP
Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data and more4.
FORCE® TROLLING MOTOR
Wirelessly connect to your Force trolling motor to navigate to waypoints, draw and follow routes, and more.
TAKE IT WITH YOU
The quick-disconnect bail mount lets you quickly install and remove your unit.
This video(s) is for guidance and usage purposes. For actual product, kindly check details & images above.
- Part Number
- 010-02879-00
- DIMENSION
- 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)
- weight
- 4.0 lbs (1.8 kg)
- WATERPROOF
- IPX7
- TOUCHSCREEN
- DISPLAY TYPE
- WXGA, IPS
- DISPLAY SIZE
- 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)
- DISPLAY RESOLUTION
- 1280 x 800 pixels
- MOUNTING OPTIONS
- Bail or flush
- INPUT
- Touchscreen with Keyed Assist
- ACCEPTS DATA CARDS
- 2 microSD cards
- waypoints
- 5000
- TRACK POINTS
- 50000
- TRACKS
- 50 saved tracks
- NAVIGATION ROUTES
- 100
- GPS
- GLONASS
- GALILEO
- BEIDOU
- Yes
- HAS BUILT-IN RECEIVER
- Yes
- receiver
- 10 Hz
- NMEA 2000 COMPATIBLE
- NMEA 0183 COMPATIBLE
- SUPPORTS WAAS
- SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS
- BUILT-IN AUTO GUIDANCE+
- GARMIN NAVIONICS+ INLAND & COASTAL
- yes (see Additional)
- TIDE TABLES
- yes (see Additional)
- BLUECHART G3
- BLUECHART G3 VISION
- LAKEVÜ G3
- LAKEVÜ G3 ULTRA
- GARMIN NAVIONICS+™
- GARMIN NAVIONICS VISION+™
- TOPO 100K
- STANDARD MAPPING
- GARMIN QUICKDRAW CONTOURS
- AIS
- SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS
- ACTIVECAPTAIN® COMPATIBLE
- SAILING FEATURES
- POWER INPUT
- 9 to 18 Vdc
- TYPICAL CURRENT DRAW AT 12 VDC
- 2.3 A
- MAXIMUM CURRENT DRAW AT 12 VDC
- 5.0 A
- MAXIMUM POWER USAGE AT 10 VDC
- 34 W
- DISPLAYS SONAR
- TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)
- built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
- CLEARVÜ
- built-in 260/455/800/1000/1200 kHz
- SIDEVÜ
- built-in 260/455/800/1000/1200 kHz
- LIVESCOPE

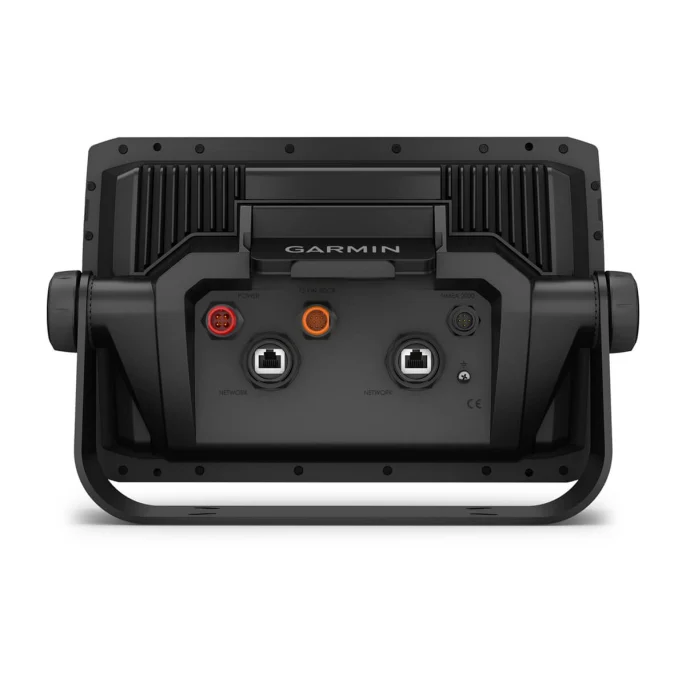

- NMEA 2000® PORTS
- 1
- GARMIN MARINE NETWORK PORTS
- 2 (large connector)
- 12-PIN TRANSDUCER PORTS
- 12-pin scanning sonar
- ANT+ (CONNECTIVITY)
- GARMIN WI-FI NETWORK (LOCAL CONNECTION)
- Yes
- ADDITIONAL
- Garmin Navionics+ (Inland and Coastal): 106sv, 105sv Australia and New Zealand Tide tables: 106sv, 105sv Australia and New Zealand
- Power output
- 600 W
