Fusion Apollo™ Speakers
6.5" LED Marine Speakers with Sports White Grilles-
Part Number :
- 010-02918-01
Availability: In Stock
Delivery Time : 15-20 Business Days
SURRENDER TO THE SOUND
Fusion Apollo coaxial marine speakers deliver immersive, high-fidelity audio on the water and are engineered to withstand harsh marine conditions.
CRYSTAL-CLEAR PREMIUM SOUND QUALITY
INCLUDED INTERCHANGEABLE SPORTS WHITE OR SPORTS GRAY GRILLES
MATCH THE MOOD WITH DUAL-HUE LED LIGHTING RINGS
AVAILABLE IN 6.5”, 7.7” AND 8.8” SIZES
RIGOROUSLY TESTED MARINIZED DESIGN
WHAT YOU'LL LOVE
PREMIUM SOUND
Enjoy immersive audio at higher volumes, thanks to updated motor designs which reduce distortion for a premium sound experience.
LED LIGHTS

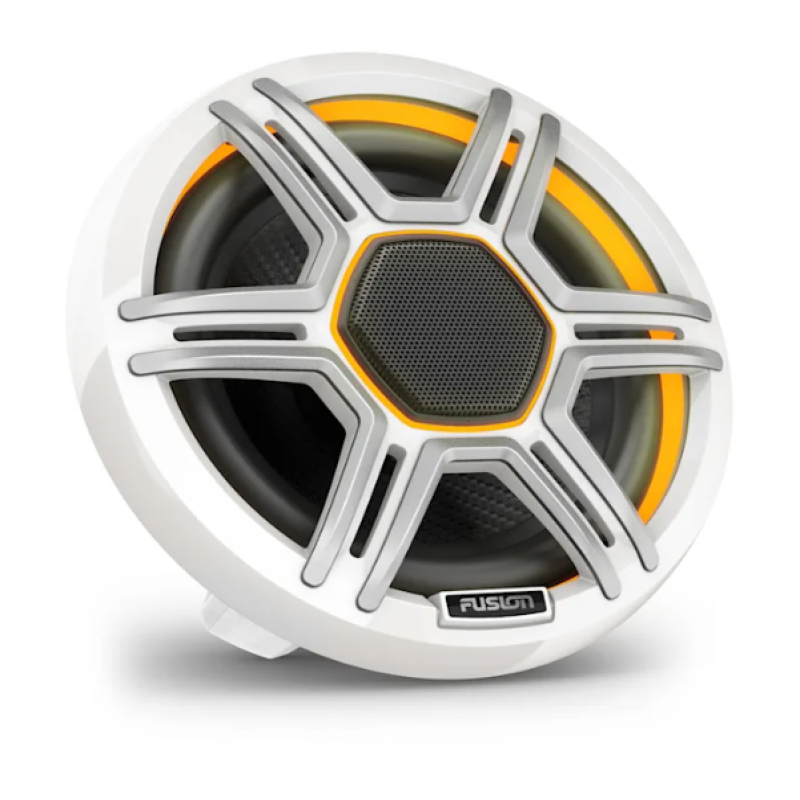

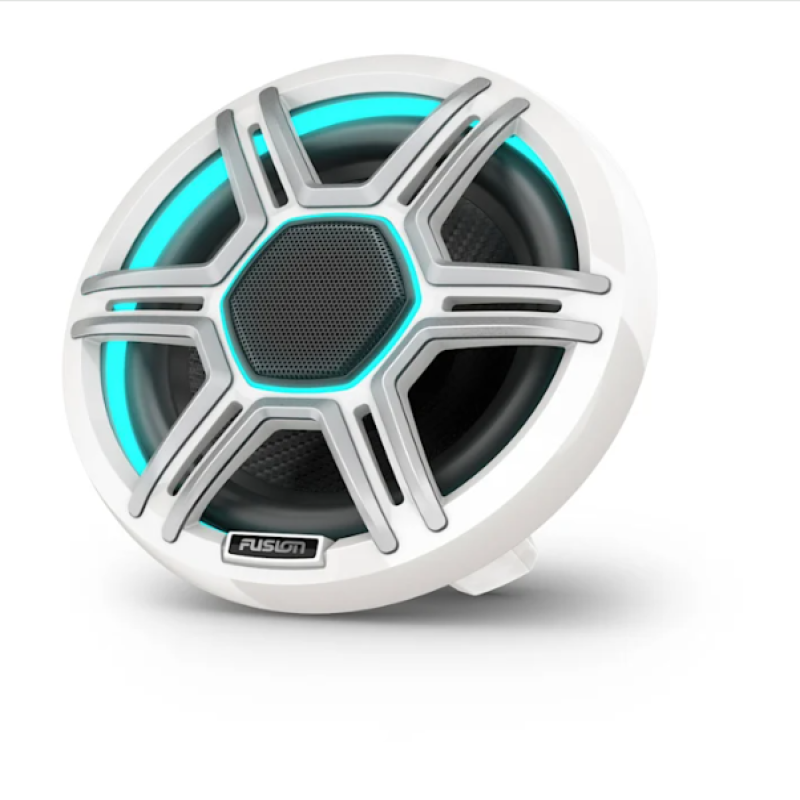

Showcase your boat with dual-hue LED lighting rings that provide a unique look through the distinct hexagonal tweeters. Choose from a broad range of colors to match the mood or music.
INTERCHANGEABLE GRILLES
Complete your speakers with the included sports white or sports gray interchangeable grilles. For more protection, purchase the shielded grille (also available in gray or white).
Made for life on the water.
INTEGRATE
FUSION® AUDIO SYSTEM
Control your onboard entertainment system from your compatible smartwatch or with the Fusion Audio smartphone app.
SYSTEM INTEGRATION
Pair your speakers with Fusion® head units and amplifiers (sold separately) for the optimal listening experience with minimal distortion.
MARINIZED CONNECTORS
Embedded water-resistant marinized connectors simplify the design and make installation easy; they also meet ABYC requirements.
FEEL THE BEAT
Pair your speakers with the Fusion® Apollo™ subwoofer so you can feel the music, too.
FUNCTIONAL
SPEAKER GRILLES
All speaker grilles accent the hexagonal tweeter’s anodized mesh cover and complement the dual-hue LED lighting.
EASY INSTALL
The grilles are simple to install without tools and don’t have screws for a seamless look and finish.
DURABLE
Fusion Apollo speakers offer a superior level of durability and are built to withstand abuse in harsh marine environments (in accordance with IP66/IP67 rating and ISO 12216 standards).
This video(s) is for guidance and usage purposes. For actual product, kindly check details & images above.
- Pair of speakers with sports white or sports gray grilles (based on what you select)
- Pair of audio cables with water-resistant two-way connectors
- Pair of LED cables with water-resistant six-way connectors
- Mounting screws
- Documentation
- Part Number
- 010-02918-01
- Sizes
- 6.5"
- color
- Sports white
- Physical dimensions (Diameter x Depth)
- 6.5" speaker: 6.93" x 4.06" (176 x 103.1 mm)
- Water and dust rating
- IP66/IP67
- Configuration
- coaxial
- PEAK POWER
- 6.5" speaker: 300 W
- RMS power
- 6.5" speaker: 75 W
- Sensitivity (1 watt @ 1 meter)
- 6.5" speaker: 90 dB
- Frequency response
- 6.5" speaker: 70 Hz - 22 kHz
- Nominal impedence
- 4 ohms
- Recommended amplifier power (RMS)
- 6.5" speaker: 25 - 150 W/channel
- LED lighting
- yes (CRGBW; 5 colors)
- LED supply voltage
- 10.8 - 16 VDC
- LED load current @14.4 VDC
- 6.5" speaker: 0.13 A per color, per speaker
- LED load current @14.4 VDC when using Garmin Spectra™¹
- 6.5" speaker: 0.28 A maximum per speaker
- Operating temperature range
- 32° to 122° F (0° to 50° C)
- Cone material
- CURV® Cone Technology with rubber surround
- Voice coil diameter
- 6.5" speaker: 1.2"
- Tweeter type
- 6.5" speaker: 1" Silk Dome
- Compass-safe distance
- 6.5" speaker: 9.19 ft (280 cm)
- Speaker connection
- 5.9" (150 mm) water-resistant 2-way connector (2-pin, audio positive and negative) or Male spade connectors (0.25" (6.3 mm) positive and 0.19" (4.8 mm) negative)
- LED connection
- 5.9" (150 mm) water-resistant 6-way connector (6-pin, CRGBW and ground)
- Warranty
- 3 years
- Mounting diameter clearance
- 6.5" speaker: 5.35" (136 mm)
- Mounting depth clearance
- 6.5" speaker: 3.03" (77 mm)
