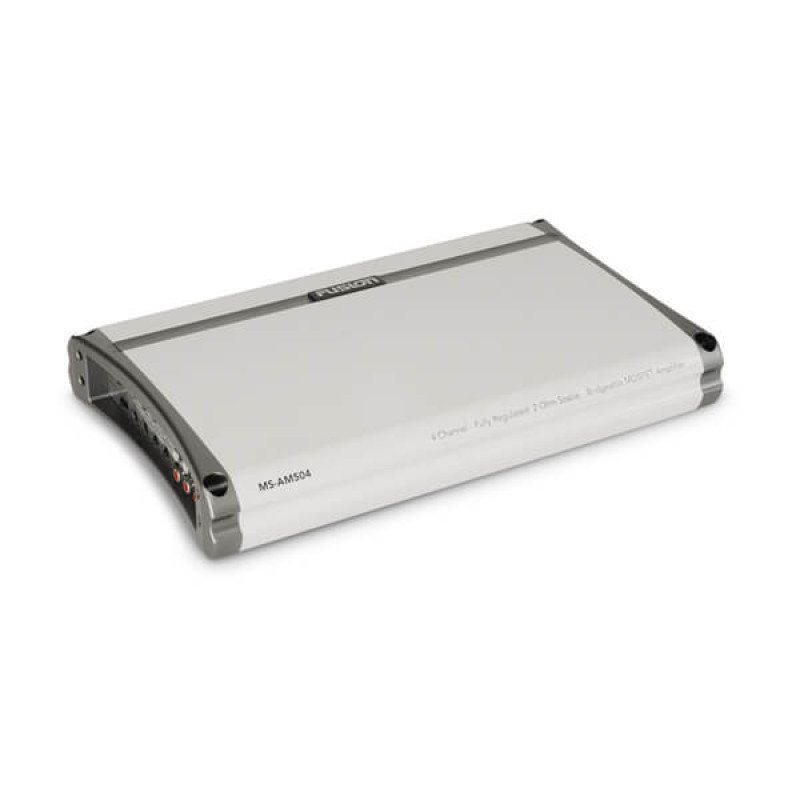

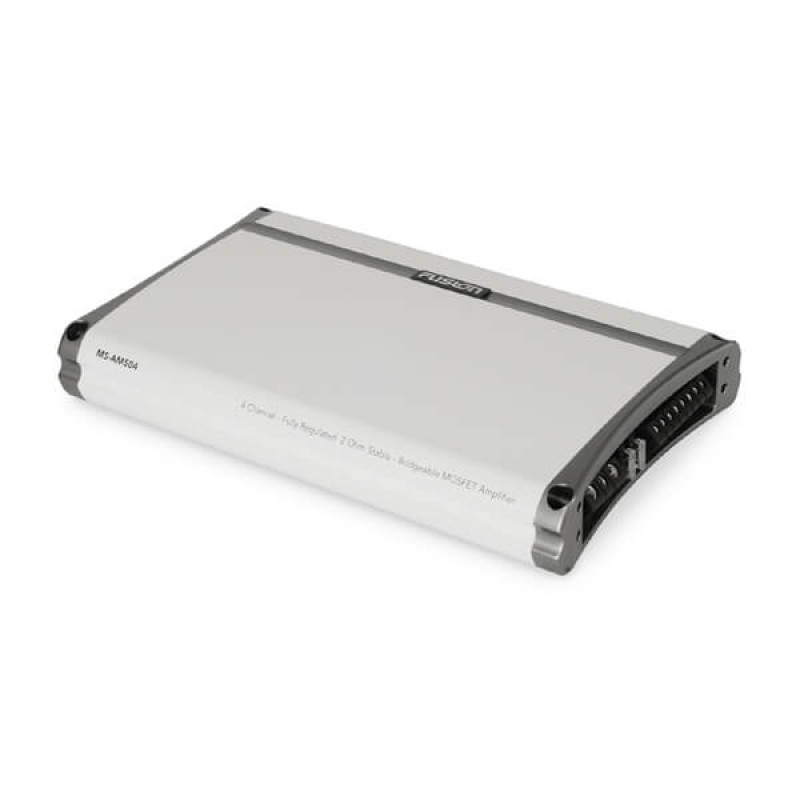

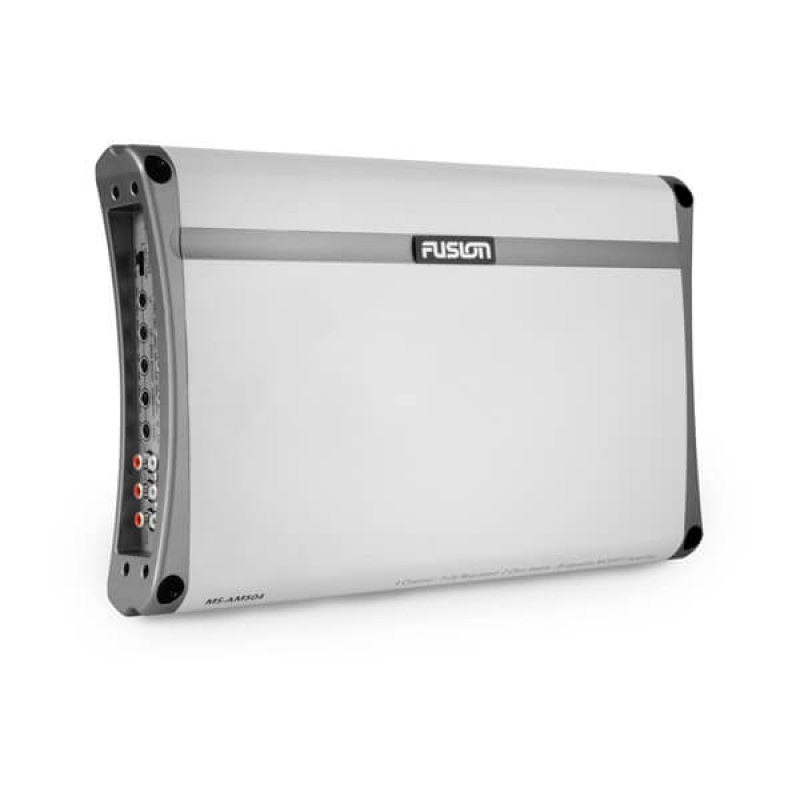

Fusion® AM Series Marine Amplifiers 500-Watt 4 Channel Marine Amplifier

Fusion® AM Series Marine Amplifiers 500-Watt 4 Channel Marine Amplifier

( )

Part Number :
010-01500-00

Availability: In Stock

Delivery Time : 20-25 Business Days

Or Buy Now and Pay Later from

Key Features

QUALITY AUDIO AMPLIFICATION
Purpose-built for the marine environment, the AM Series marine amplifiers are designed to enhance your on-water listening experience with quality audio amplification.

QUALITY AUDIO AMPLIFICATION

Purpose-built for the marine environment, the AM Series marine amplifiers are designed to enhance your on-water listening experience with quality audio amplification.

Class-AB amplifier design delivers efficiency with reduced distortion.

Connect up to two speakers per channel at 2 ohms, or bridge two channels at 4 ohms for increased power.

Conformal coated PCBs provide extra protection from the marine elements.

Heat sink provides greater dissipation of heat for enhanced component reliability.

The amplifiers are available in 2-channel and 4-channel configurations.

CLASS-AB AMPLIFIER TECHNOLOGY

The Class-AB design provides high power output with reduced distortion to the connected speakers/subwoofers for an enhanced level of audio performance.

ENHANCED SYSTEM PERFORMANCE

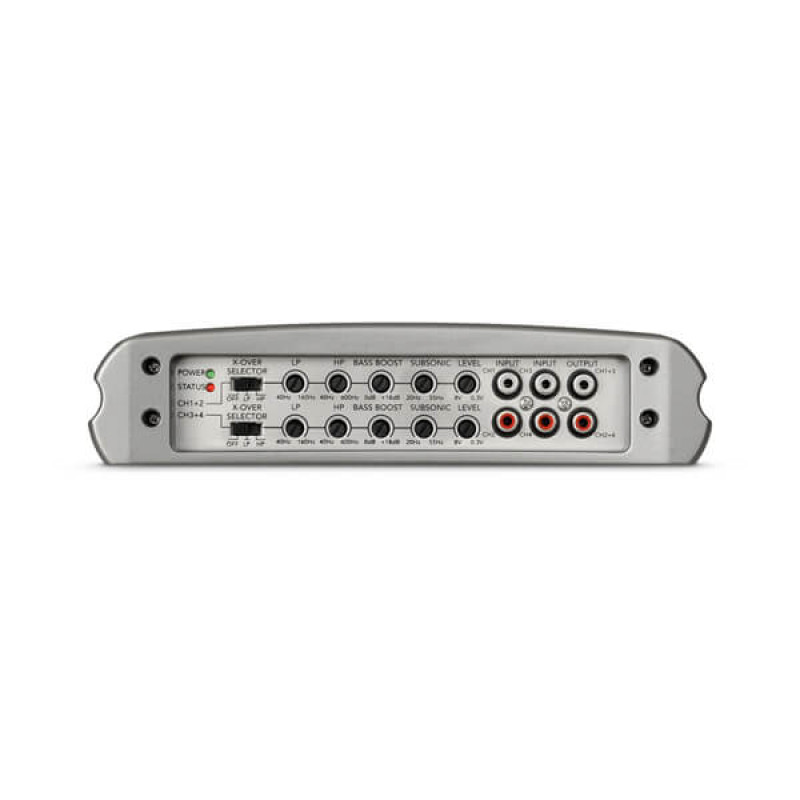

The AM Series amplifiers feature built-in variable bass boost, a subsonic filter and variable low/high pass crossover filters for enhanced performance and system protection.

Designed and engineered for the marine environment.

MARINE-READY DESIGN WITH CONFORMAL COATED PCBS

Helping to extend the life of your amplifiers, the AM Series amplifiers are designed with conformal coated PCBs to provide extra protection from the marine elements.

HEAT SINK TECHNOLOGY

The incorporated heat sink is designed to dissipate heat efficiently, providing more thermal stability and enhanced component reliability.

Multiple configurations to suit your audio needs.

400-WATT 2-CHANNEL AMPLIFIER

The AM Series 400-watt 2-channel amplifier can power up to a maximum of two pairs of speakers or one subwoofer.

500-WATT 4-CHANNEL AMPLIFIER

The AM Series 500-watt 4-channel amplifier can power up to a maximum of four pairs of speakers or two pairs of speakers and one subwoofer.

Fusion RA210 – compact marine stereo

LEARN MORE

Fusion RA70 Series – DIN-sized marine stereos

LEARN MORE

Experience quality acoustics with the EL Series speakers.

LEARN MORE

One amplifier (based on what you select)
Documentation

Part Number
010-01500-00
Physical dimensions (Length x Width x Height)
2 Channel: 11.65" x 9.02" x 2.09" (296 x 229 x 53 mm) 4 Channel: 14.41" x 9.02" x 2.09" (366 x 229 x 53 mm)
Amplifier class
Class-AB
Peak power (watts)
2 Channel: 400 W 4 Channel: 500 W
Total rated power output - 4 Ohm (Watts)
2 Channel: 65 W RMS x 2 @ 14.4 V input - 4 Ohm < 1% THD 4 Channel: 65 W RMS x 4 @ 14.4 V input - 4 Ohm < 1% THD
Total rated power output - 2 ohm (watts)
2 Channel: 100 W RMS x 2 @ 14.4 V input - 2 Ohm < 1% THD 4 Channel: 100 W RMS x 4 @ 14.4 V input - 2 Ohm < 1% THD
Total rated power output - 4 ohm Bridged (watts)
2 Channel: 200 W RMS x 1 @ 14.4 V input - 4 Ohm Bridged < 1% THD 4 Channel: 200 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD
Frequency response
5 Hz - 38 kHz (-3dB, dB @ 4 Ohm rated power)
Input sensitivity
0.3 V - 8 V RMS, user adjustable
Input impedance
5k Ohm nominal
High-pass/low-pass full range filter
yes (user selectable)
HP variable crossover frequency
40 Hz - 600 Hz
LP variable crossover frequency
40 Hz - 160 Hz
Bass boost
0 dB - 18 dB, user adjustable
Operating voltage
10.8 V - 16 V DC
Current consumption (StandBy)
< 1 mA @ 14.4 V input
Current consumption (Max)
2 Channel: 25 A 4 Channel: 50 A

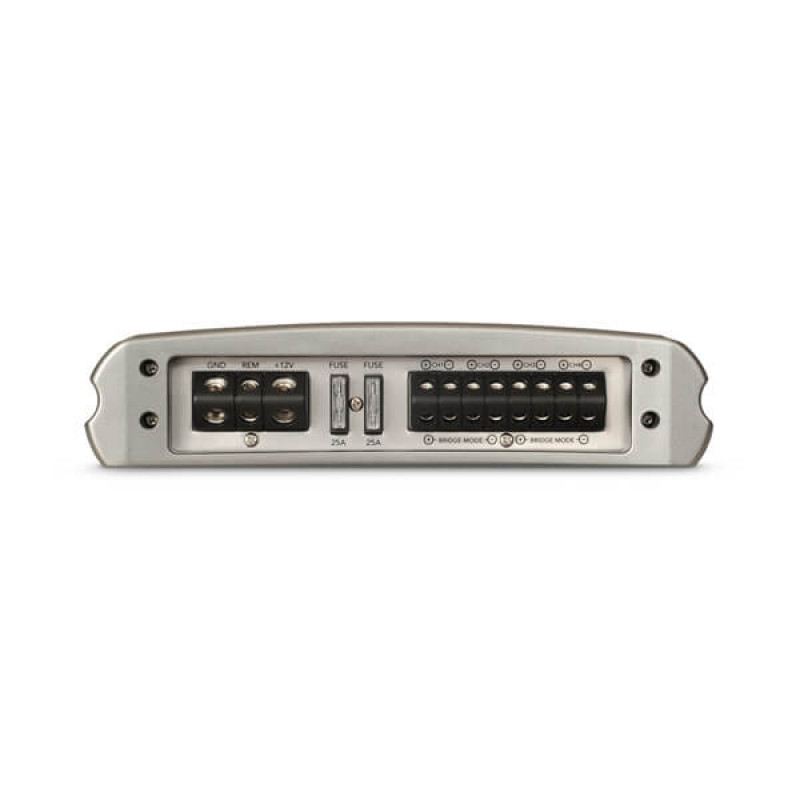

Fuse rating
2 Channel: 1 x 25 A ATC blade-type (SAE J1171 compliant) 4 Channel: 2 x 25 A ATC blade-type (SAE J1171 compliant)
Operating temperature range
32° to 122° F (0° to 50° C)
Warranty
1 years
